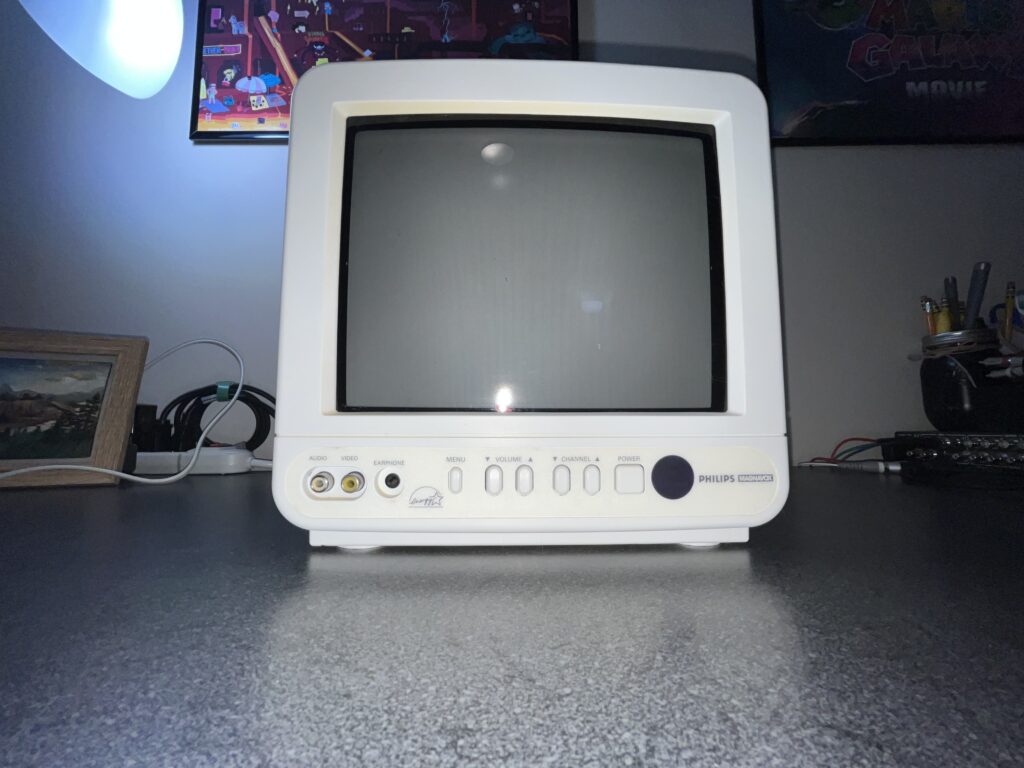

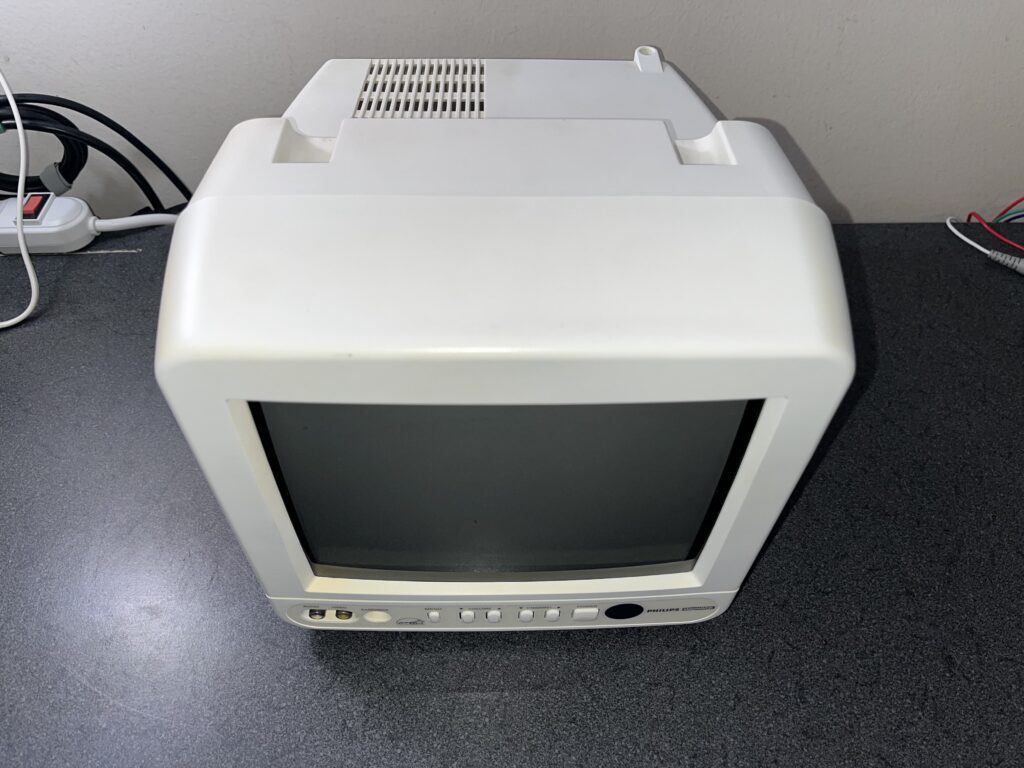

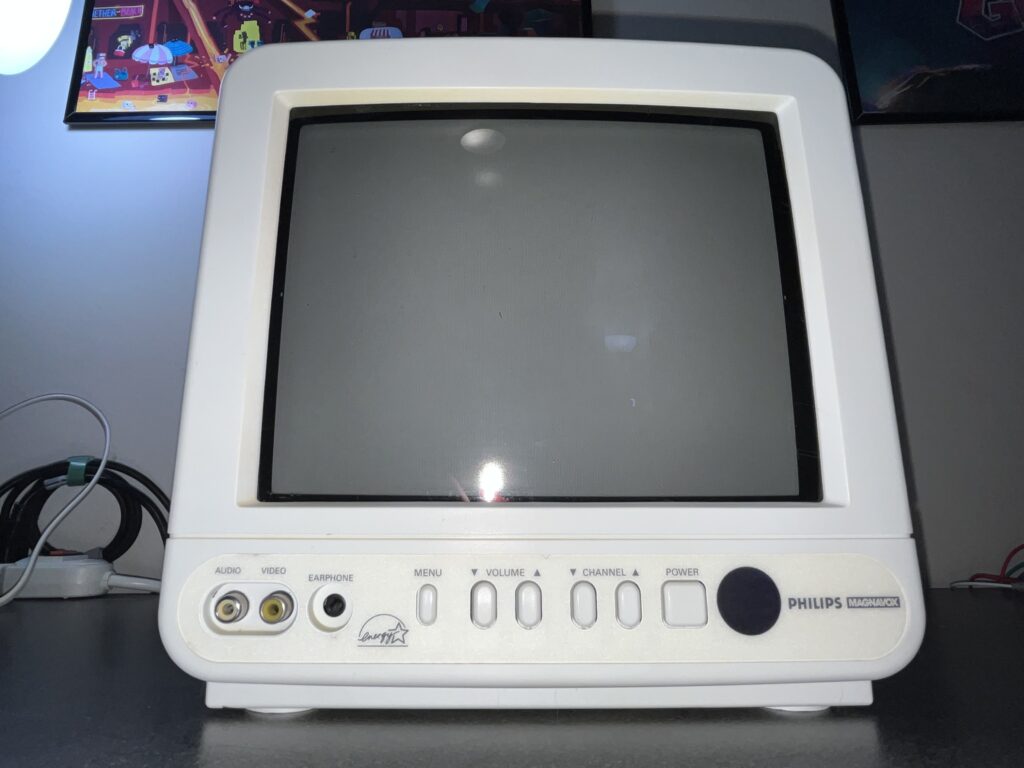

The Philips Magnavox PR0930X1 is one of those tiny late-era consumer CRTs that should objectively be stupid… but somehow circles back around into being ADORABLE. She’s a 9-inch Funai-built kitchen TV with composite input, RF, a headphone jack, and for some reason an FM radio tuner built directly into the set.

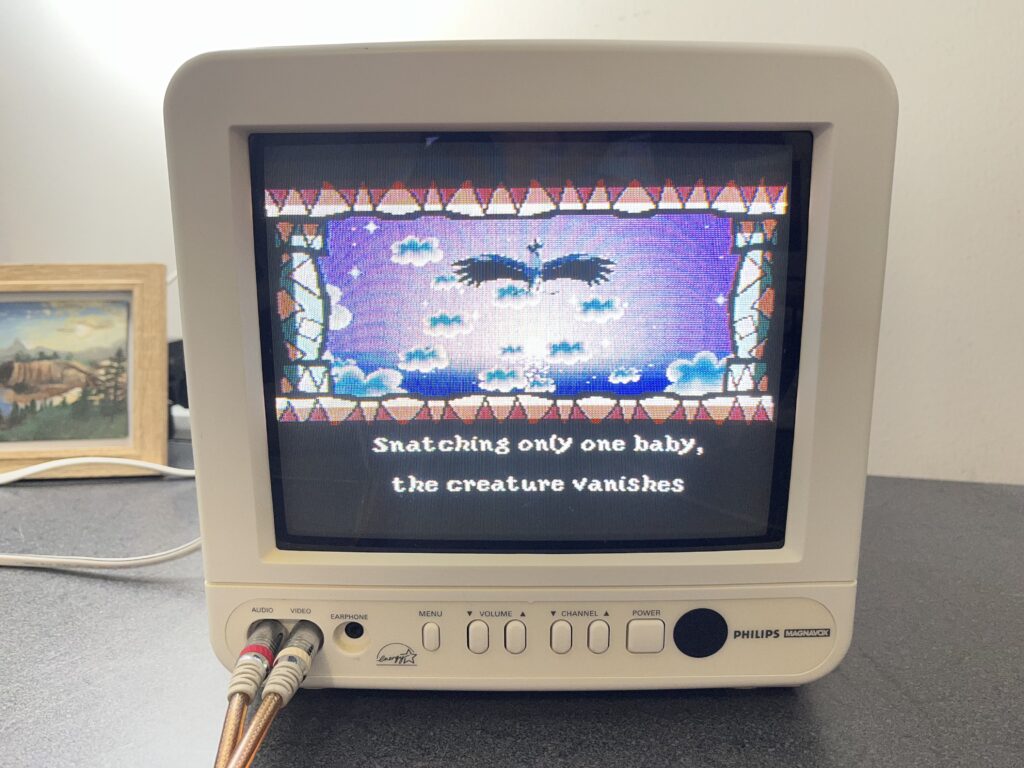

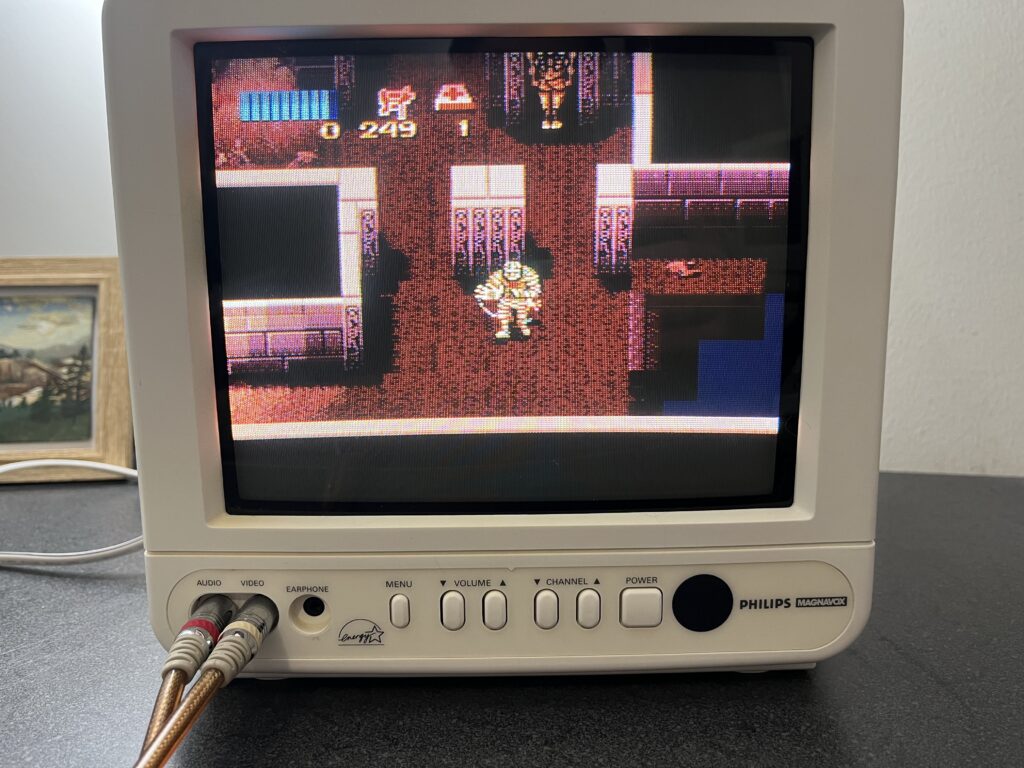

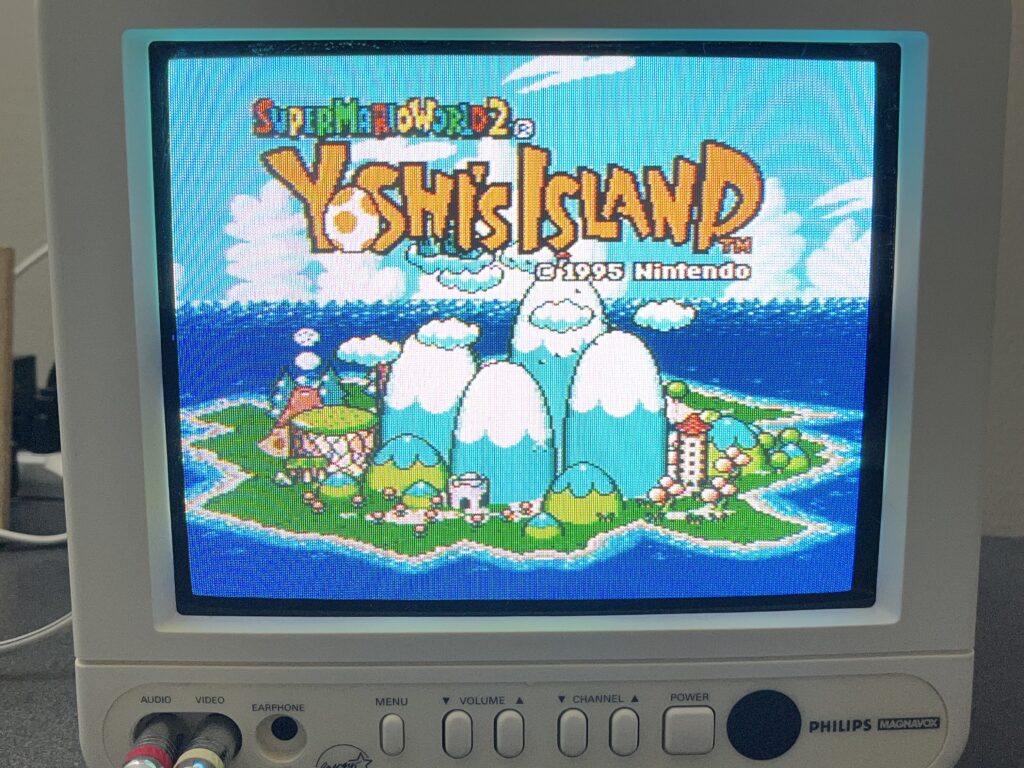

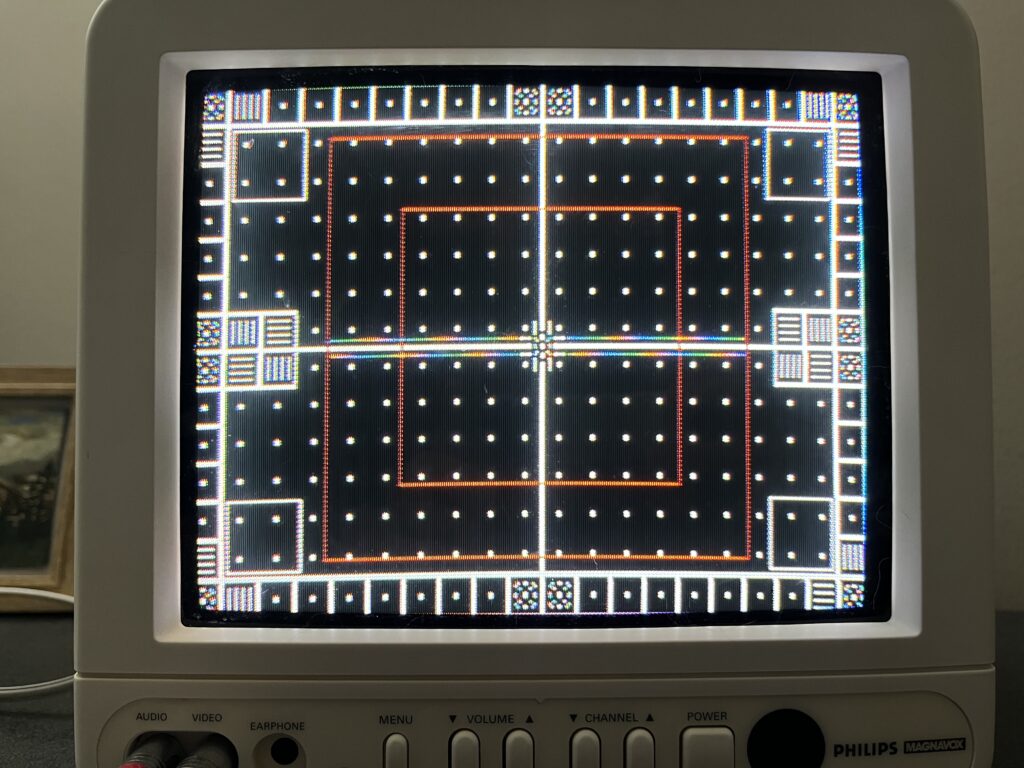

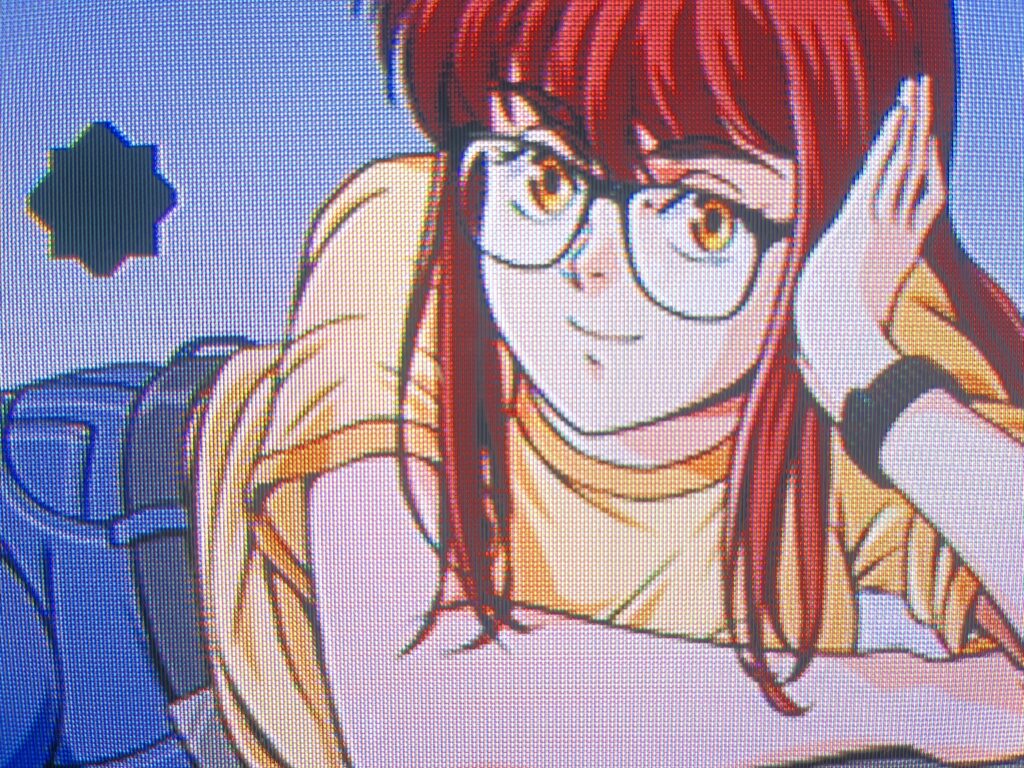

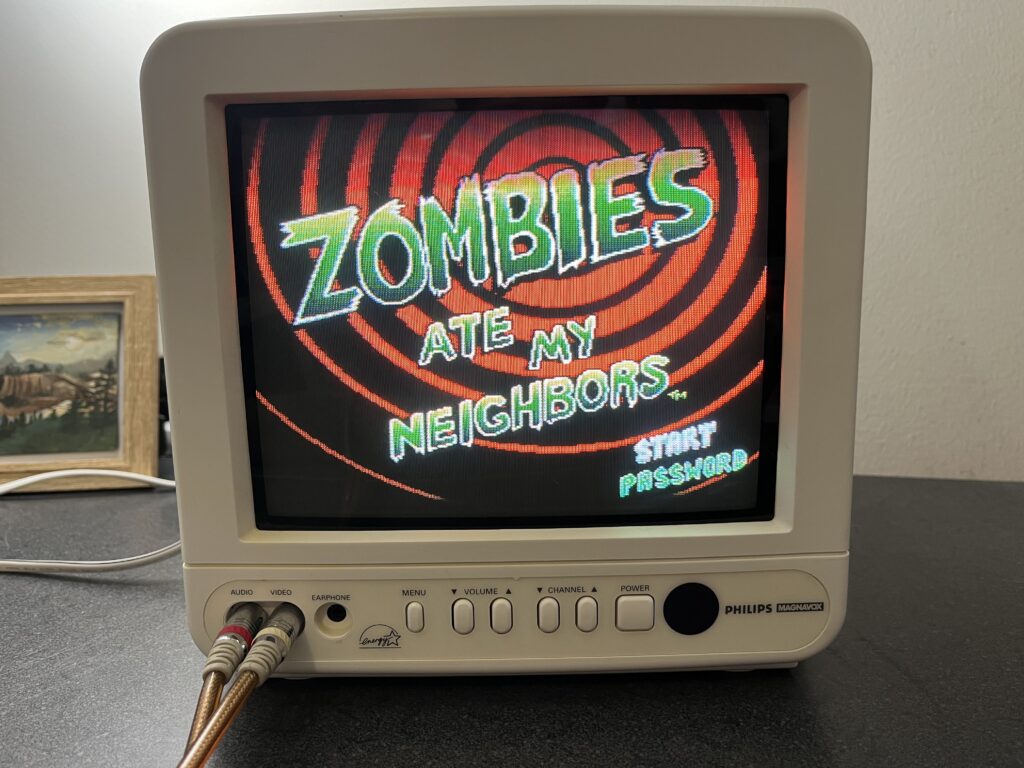

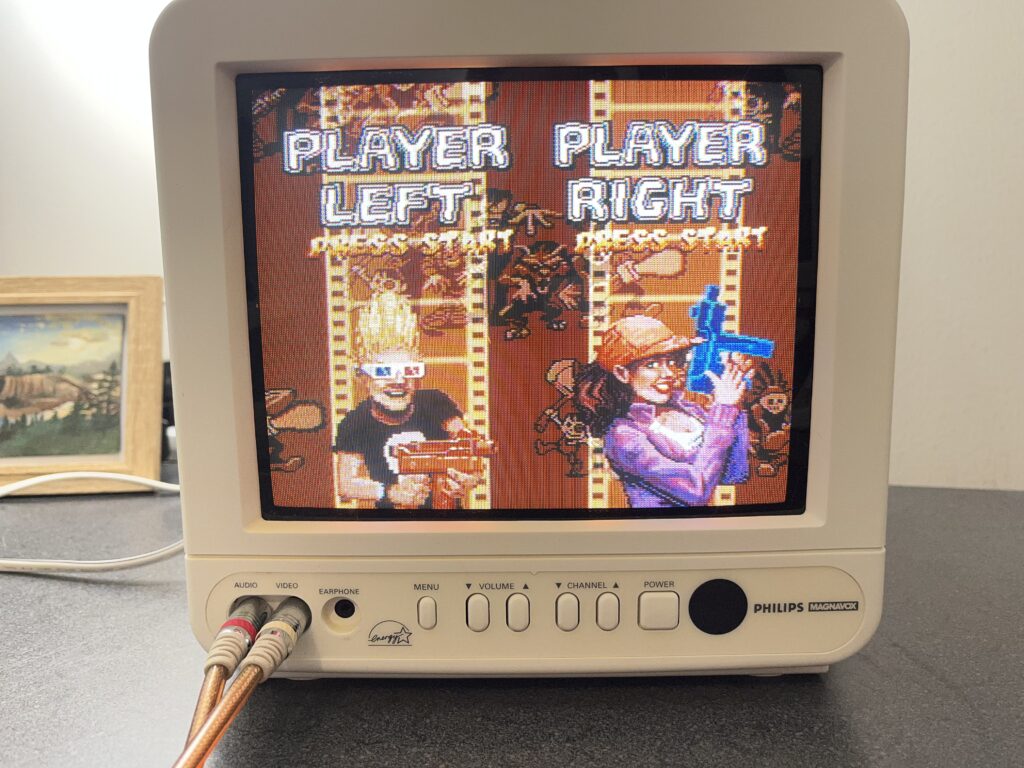

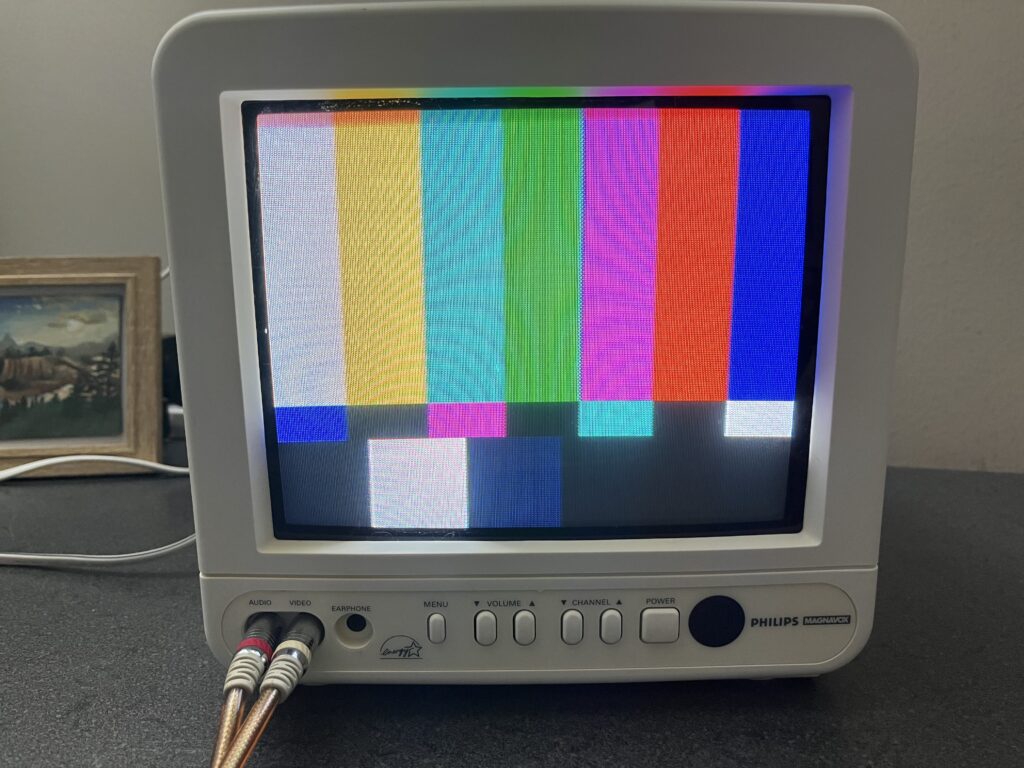

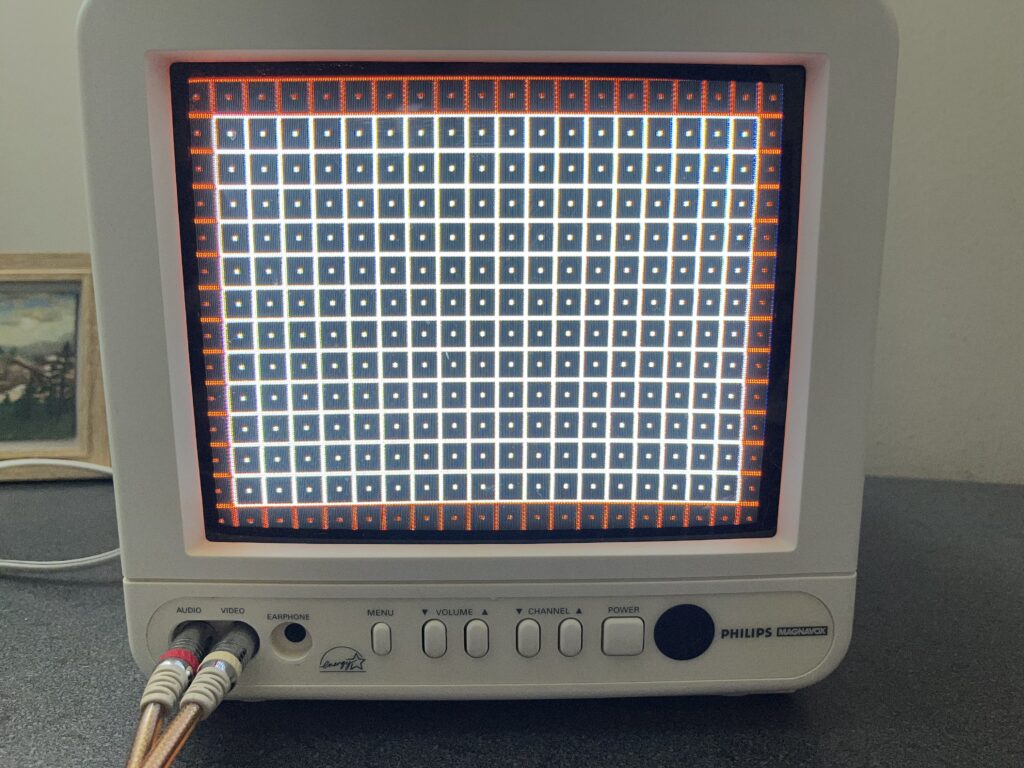

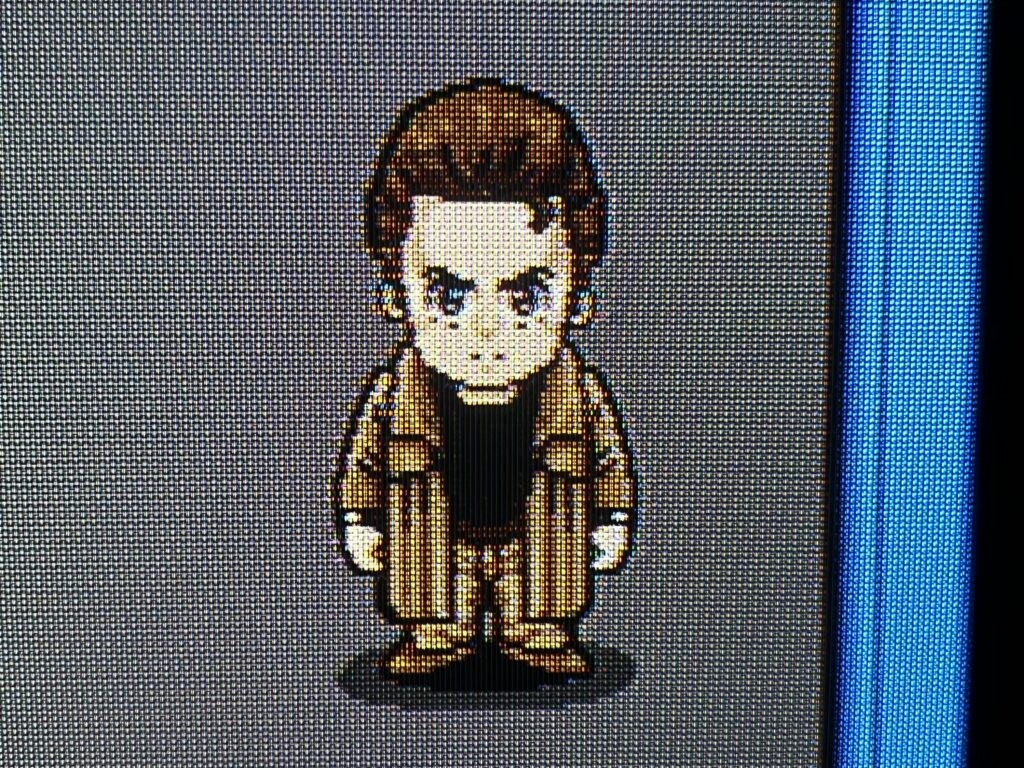

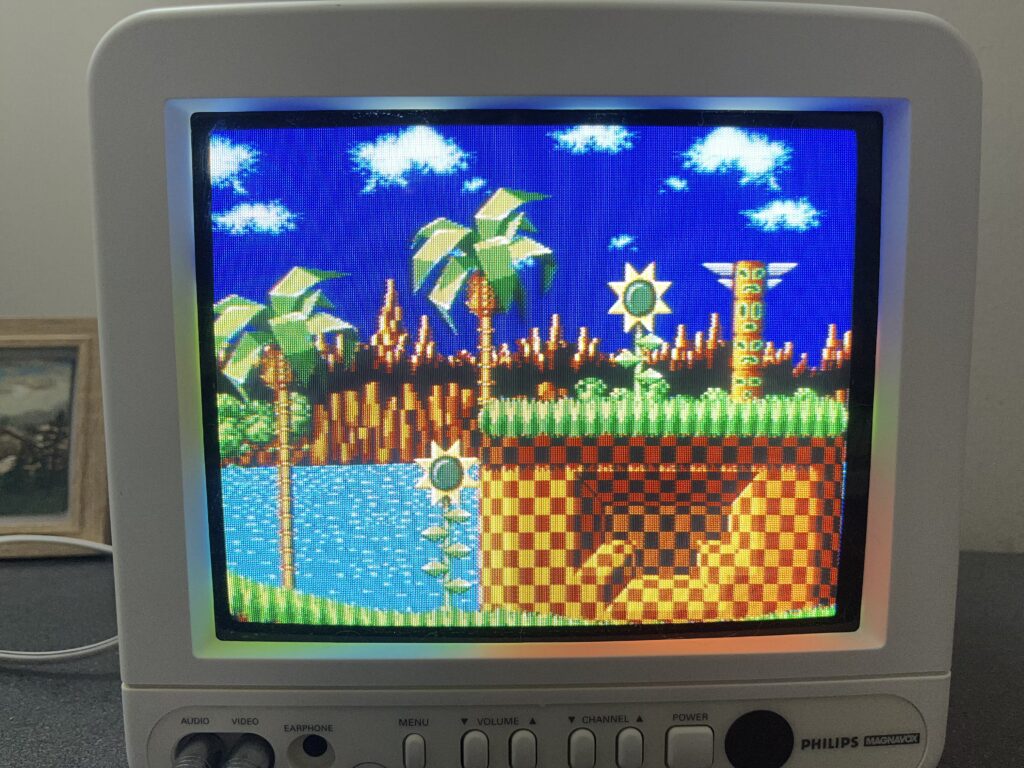

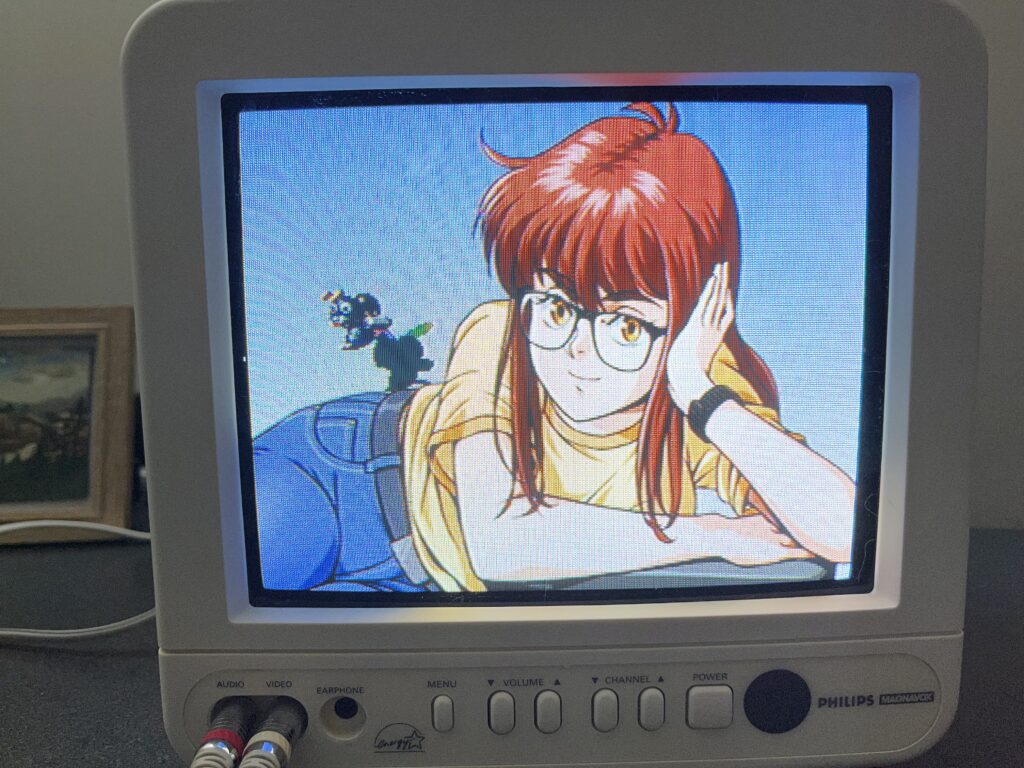

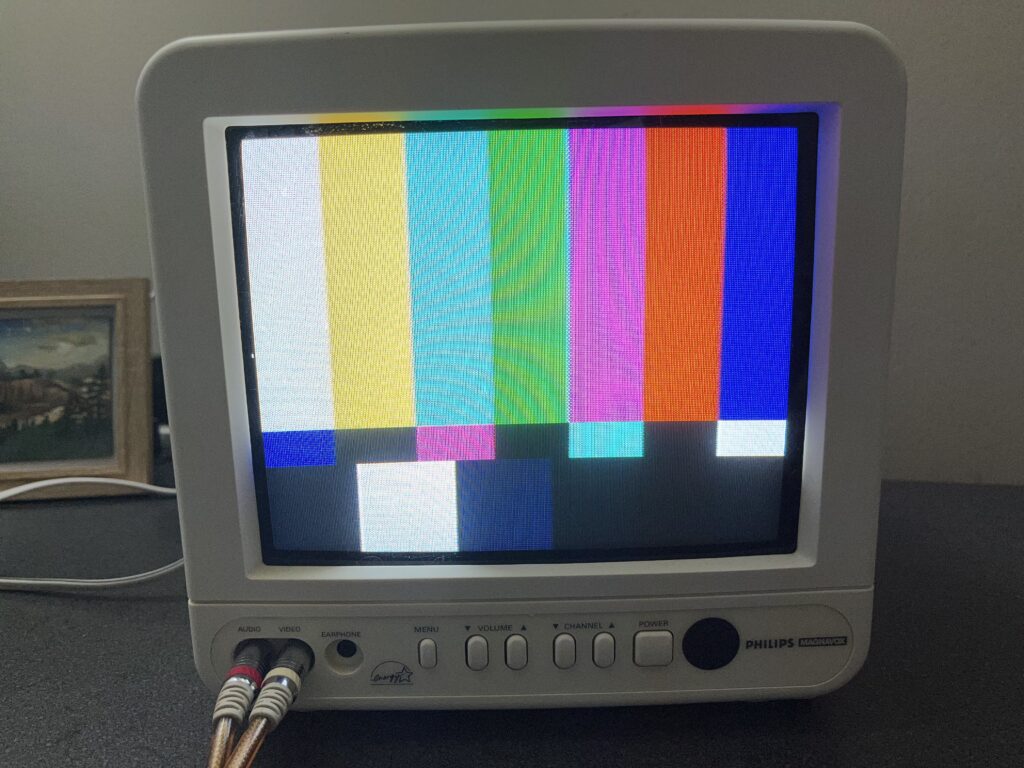

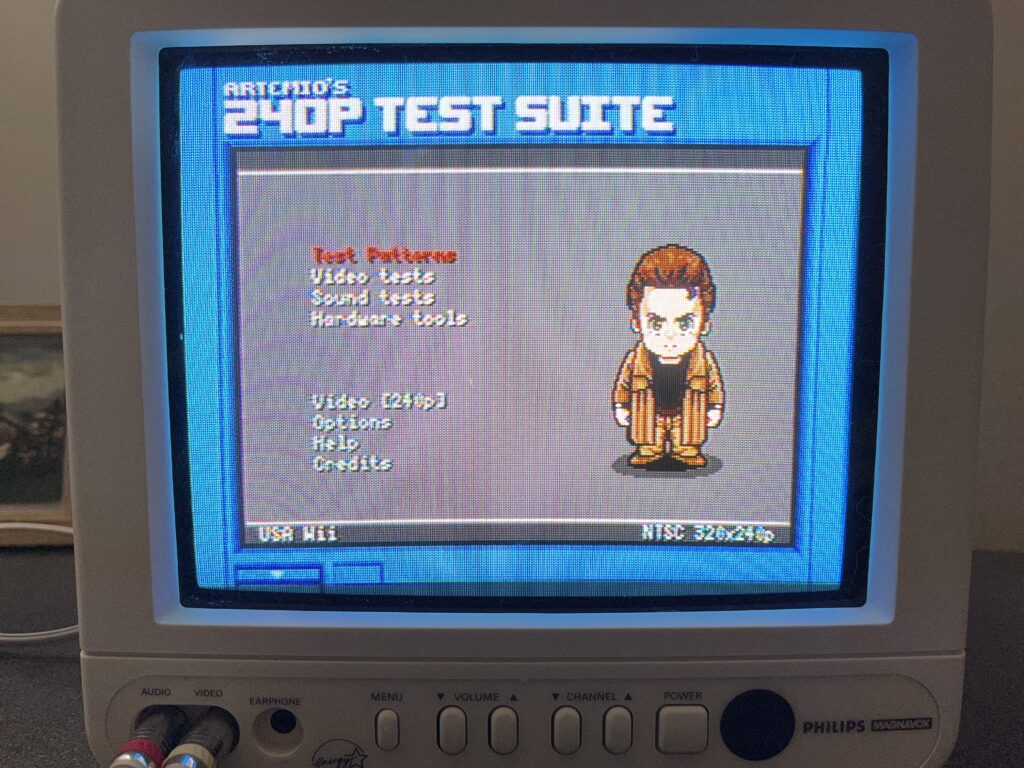

Image quality is exactly what you’d expect from a cheap slot-mask consumer tube from this era. Soft, warm, colorful.. Geometry is usually “good enough”. On a set this small it doesn't really matter. If geometry is THAT bad she is probably broken lol.
Now let’s talk about the REAL feature. The flyback whine on this thing is absolutely outrageous. Young ears are going to hear this thing on any airplane that passes over my house. The moment she powers on there’s this unbelievably sharp high-pitched scream coming from the chassis like a dog whistle. Older CRT foamers with destroyed hearing probably won’t notice it at all. Any teenager is going to think the TV is about to explode. Tiny CRTs always sounded a bit…. Aggressive but this one is just angry about something.

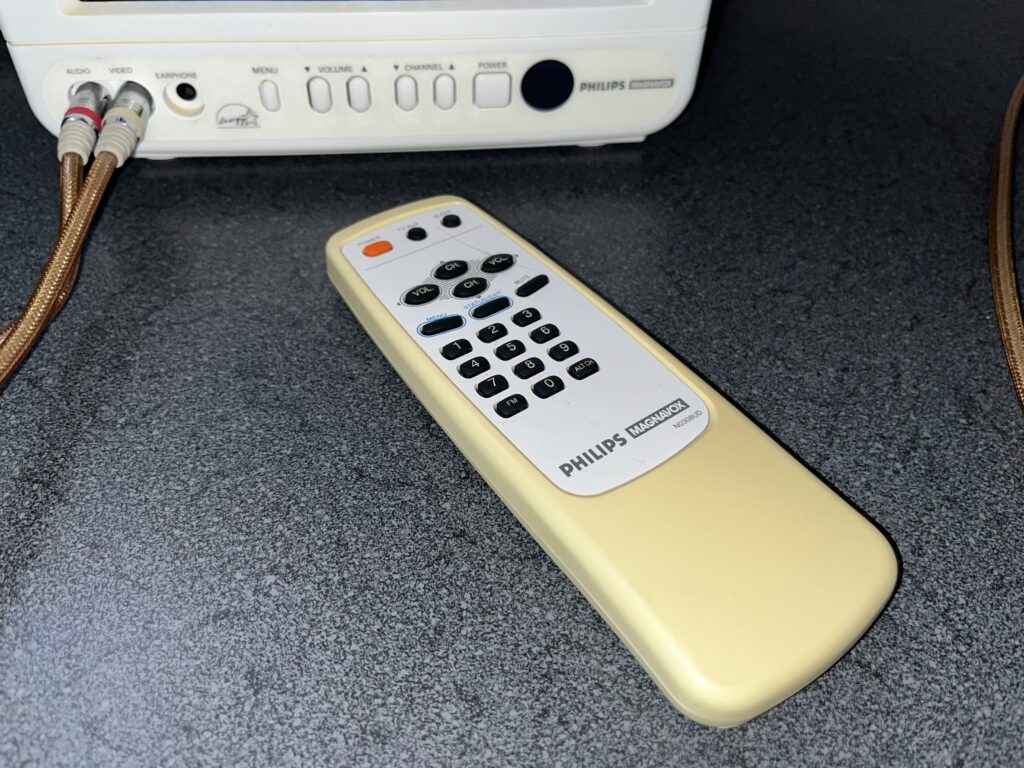

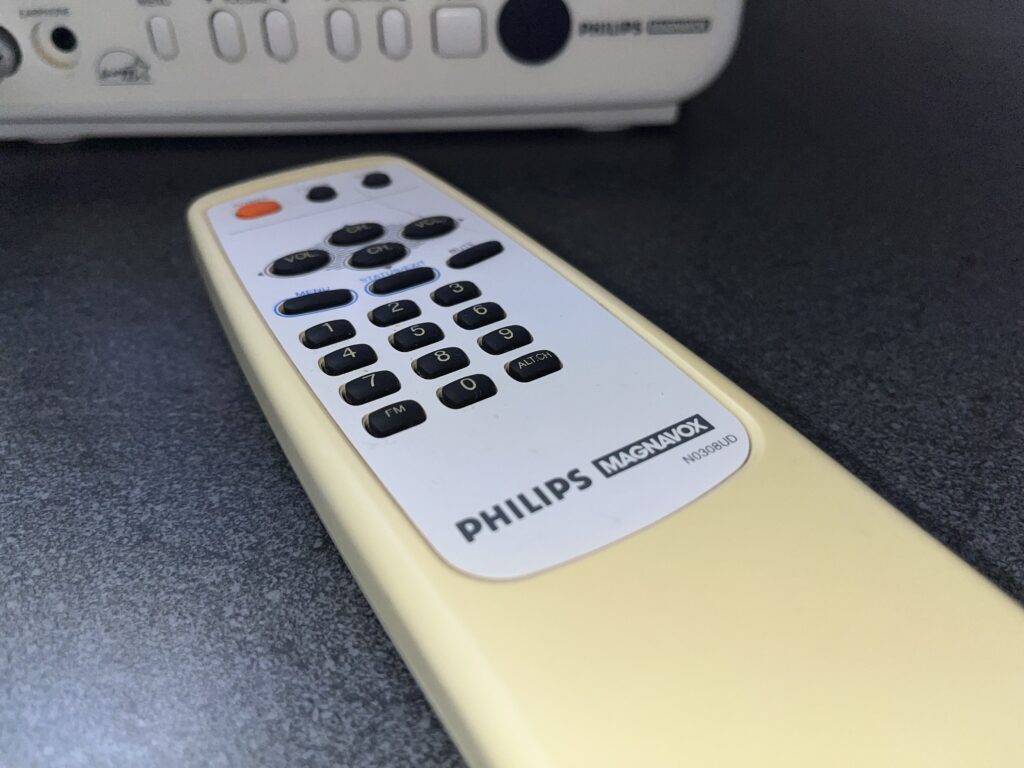

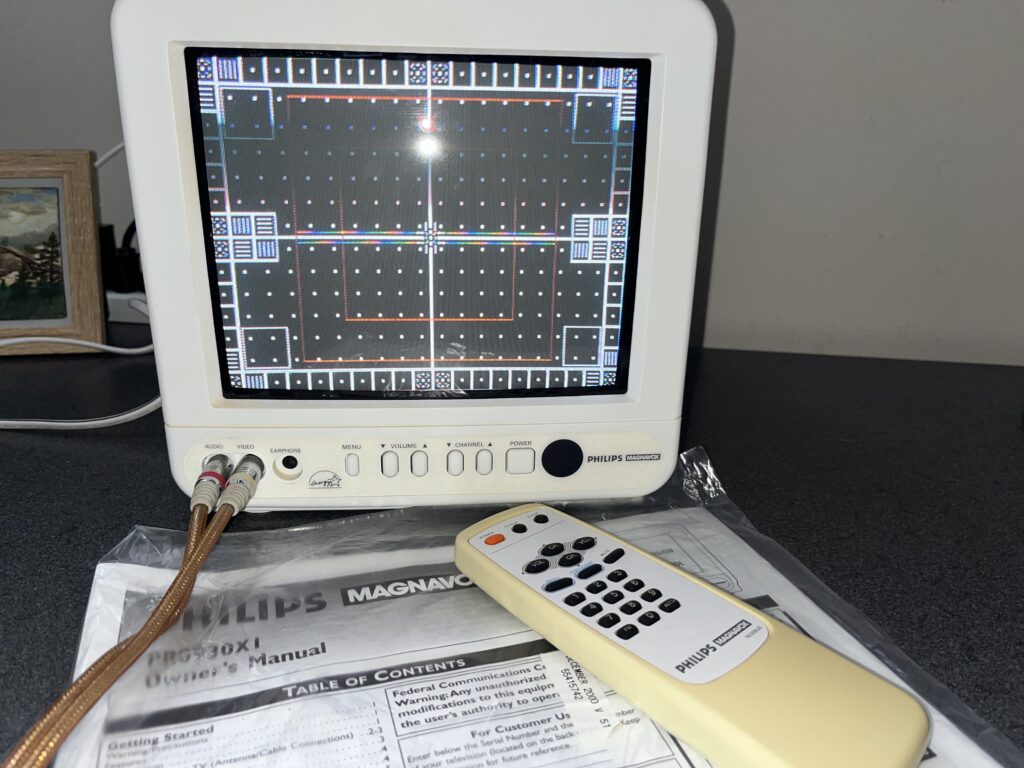

I have the original box, foam inserts, sealed manual, and remote all in MINT condition.
A weird little NOS consumer CRT, intended for an early 2000s kitchen with real composite inputs and a LOUD personality? I love her. 6.7
Service Mode: Press remote control buttons 2 —> 7 —> 1 —> MUTE sequentially within 5 seconds after turning the power off.
Use the remote control unit. Turn the power on. Turn the power off. Press the 2, 7, 1 and then the MUTE button. These steps must be done within 5 seconds.
Brand:
Philips
Manufacturer:
Funai
Model:
PR0930X1
Series:
PR09 Series
Viewable Size:
9″
Input Signals:
RF, Composite Video
Native Resolutions:
240p / 480i
Horizontal Scan Range:
15.734 kHz
Vertical Scan Range:
59.94 Hz
Aspect Ratio:
4:3
Mask:
Slot Mask
Adjustments:
Brightness, Color, Picture, Sharpness, Tint, Channel Edit, FM Antenna Selection
Removable Glare Film:
No
Sound:
Built-in Mono Speaker + Headphone Output
Chassis:
Funai 7610 Chassis
Weight:
12 lbs (5.4 kg)
Dimensions (W/H/D):
Approx. 11.2″ × 10.4″ × 11.8″
Application:
Consumer Television
Cabinet Material:
Plastic
Launched:
2000
Country of Manufacture:
Malaysia
Market:
North America
Power Consumption:
44W

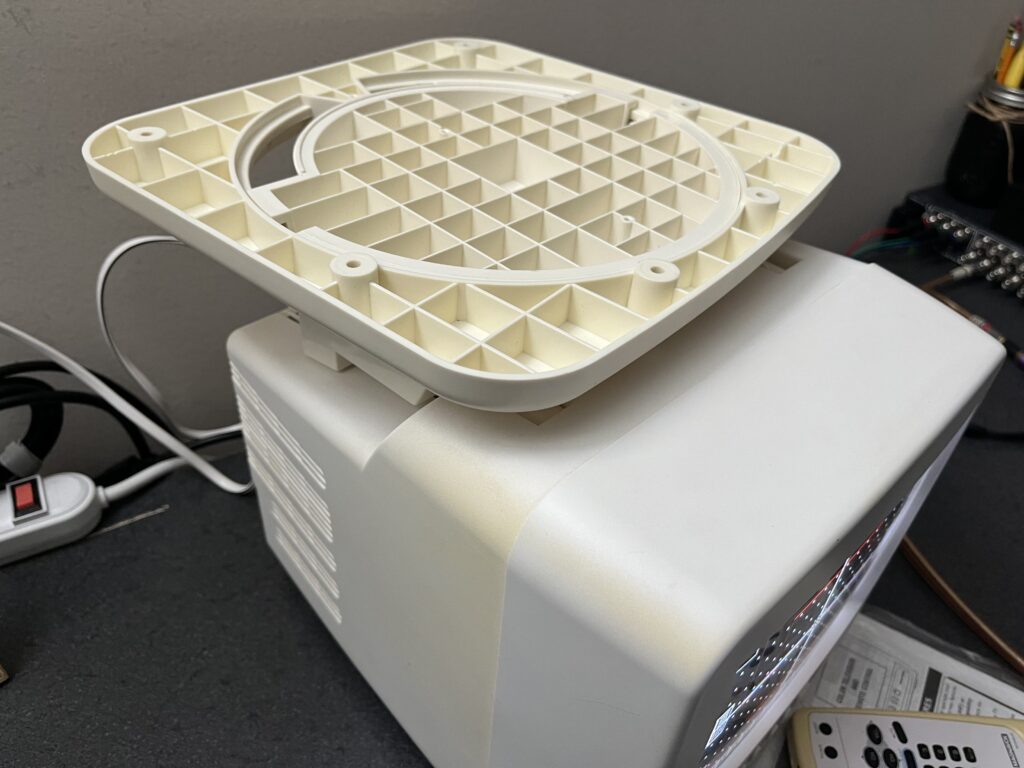

Mounting:

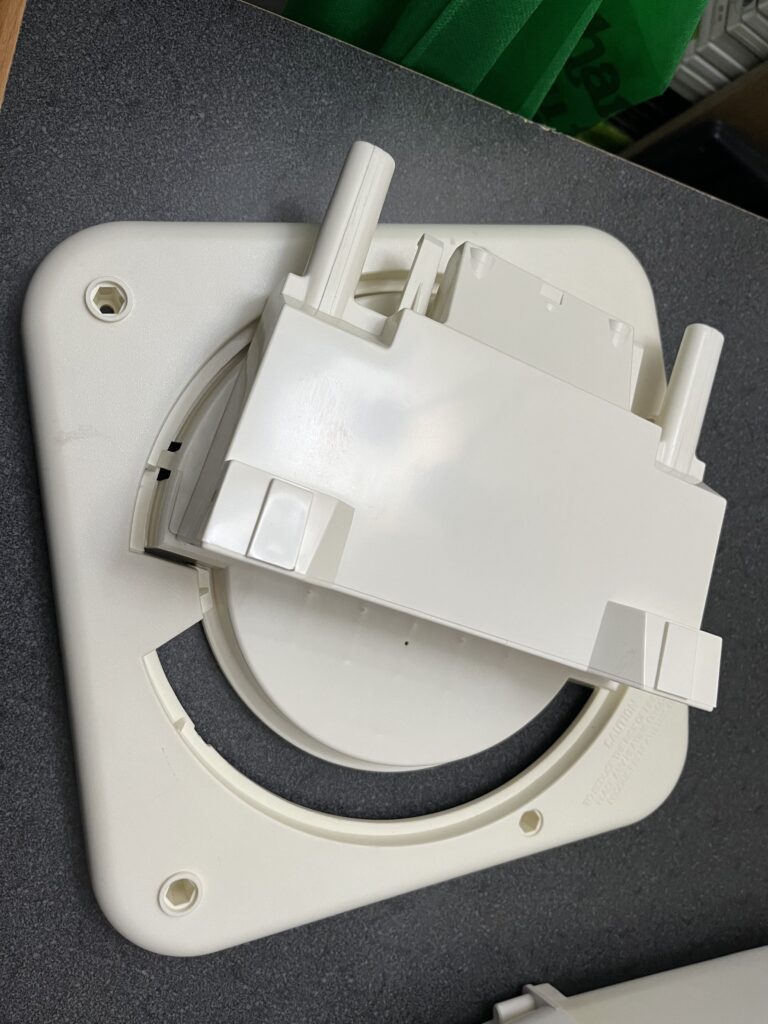

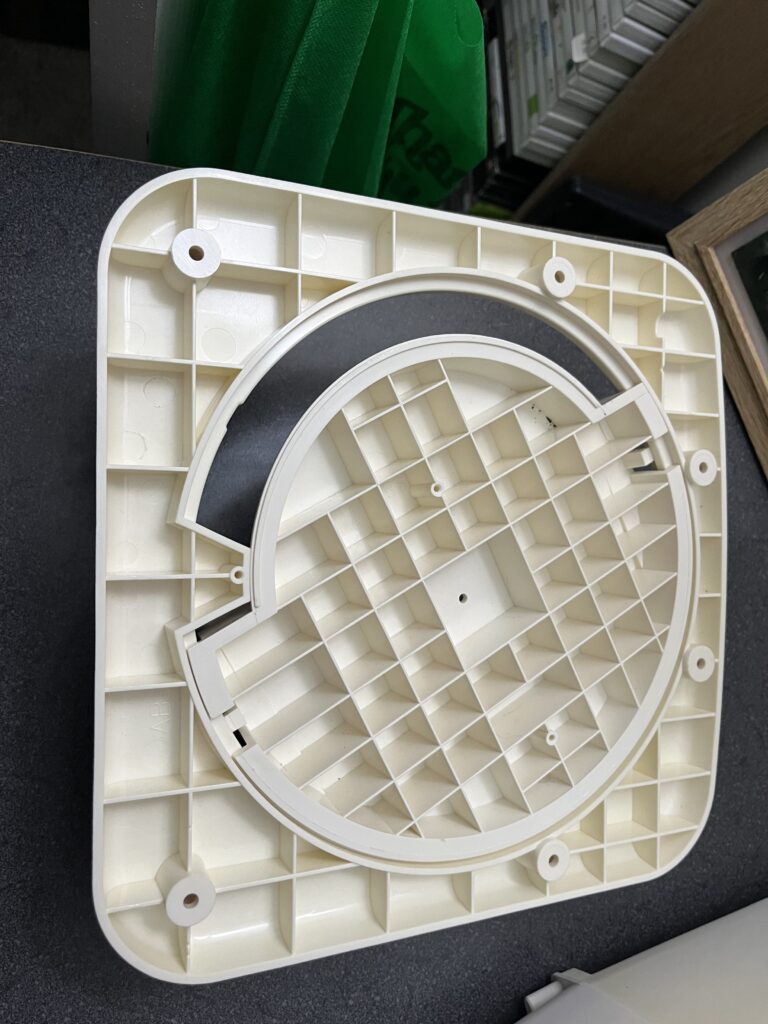

Under Kitchen Cabinet mount or On desk/table
Degaussing:
Auto-on power, Manual
CREDIT FOR THIS SPECIFICATIONS TABLE GOES DIRECTLY TO:
Philips/Funai Service Documentation, and Benjamin McKee
Many technical specifications listed on this site are sourced from the CRT Database. Their work documenting CRT displays is extensive, accurate, and incredibly valuable to anyone interested in this hardware.
Whenever specifications are used from their database, proper credit is given.
If you want deeper technical details on any CRT mentioned here, you should absolutely reference their site.
